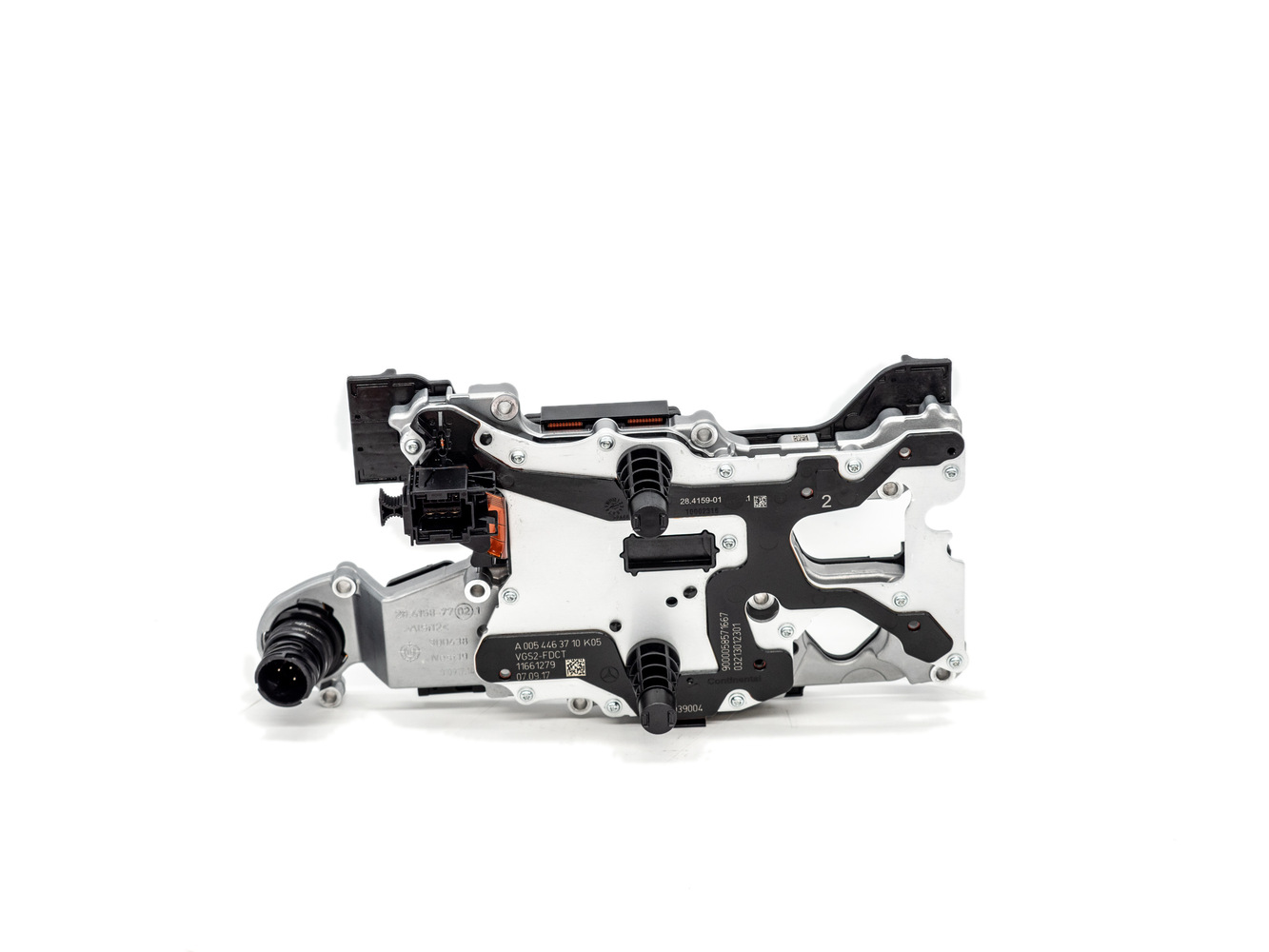

Mercedes-Benz 7G-DCT 724.0 VGS-FDCT TCU Repair

SKU TRA7240

24-month warranty
Transmission Control Unit
Part No: A0002702700 / A 000 270 27 00
Part No: A0002703600 / A 000 270 36 00
Part No: A0002703900 / A 000 270 39 00
Fits Mercedes-Benz A-Class, B-Class, CLA and GLA
Restores transmission functionality

From £349.00

Fast Turnaround 2-5 working days

Warranty Protection Covering all our repairs

Choose your service

Repair Service (by post) Send us your unit — we repair and return it. Add to order and complete the quick vehicle form; free UK shipping label included. Send us your unit. We repair & return it. Free UK shipping label. £349.00 (Excl. 20% VAT)

Service

Clear

★★★★★ “Any issues with abs units this is the team to sort it 👍” — Adrian B.

★★★★★ “really good company , very fast repair done on a.b.s. control unit” — Anonymous

★★★★★ “Excellent service. Great company to deal with, very helpful. Would certainly use again.” — Gordon M.

★★★★★ “It’s good to have this gang on hand when it comes to gearbox electronics.” — Pawel P.

★★★★★ “Very professional , very prompt, well organised, thank you.” — Peter B.

★★★★★ “Good service on phone when ordering. Not able to say any more until part is fitted and see how it works!” — Eddie M.

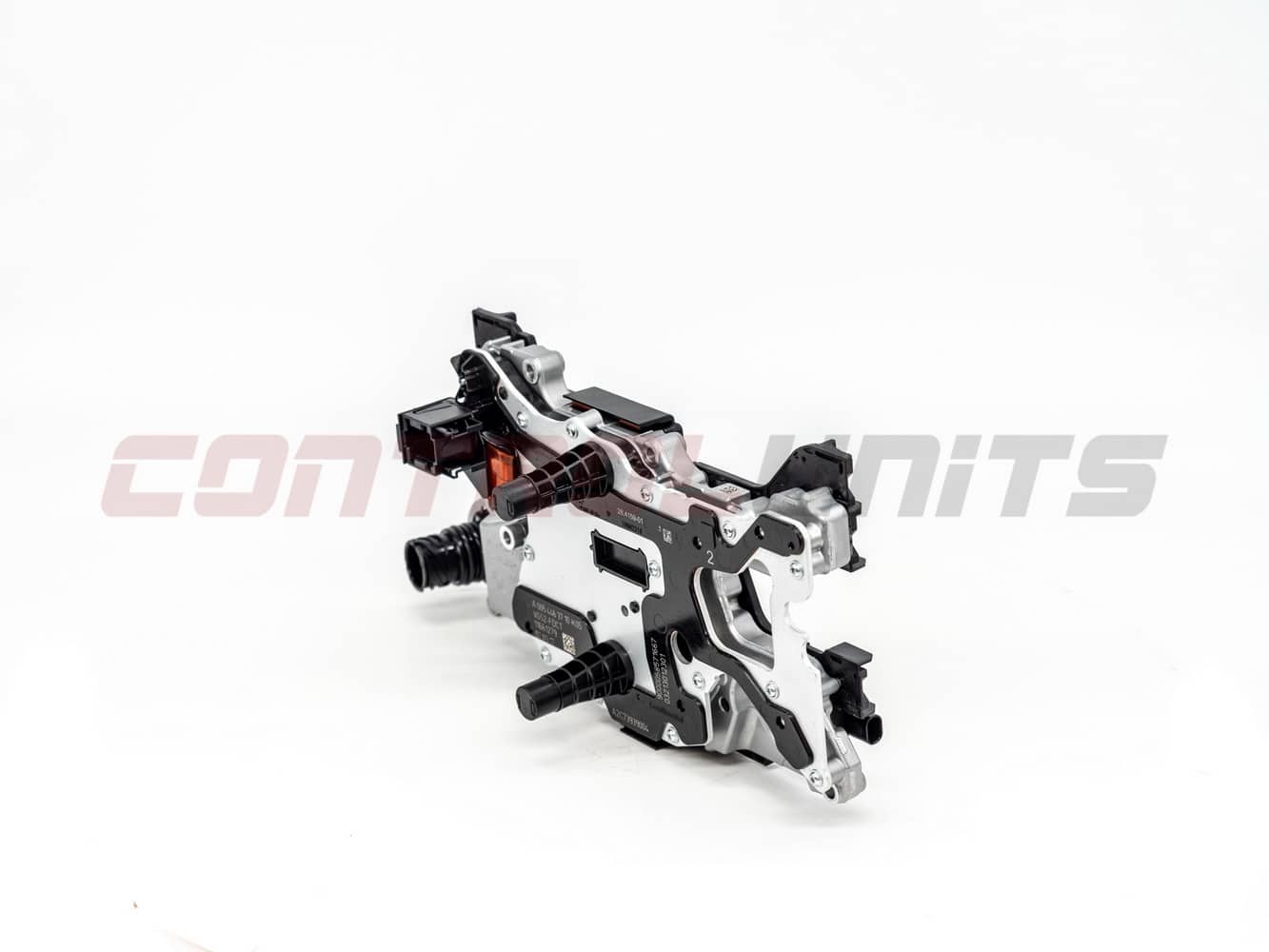

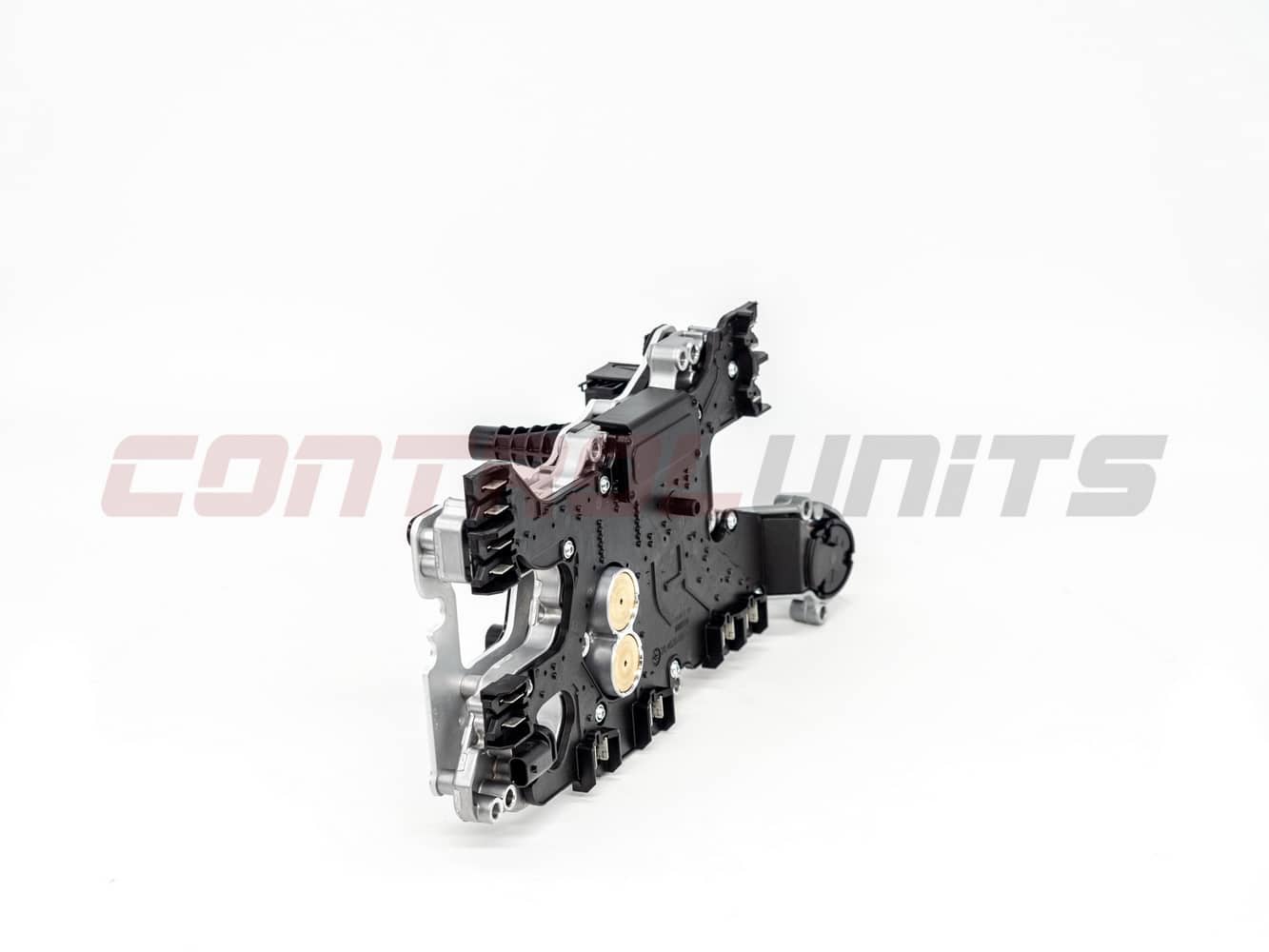

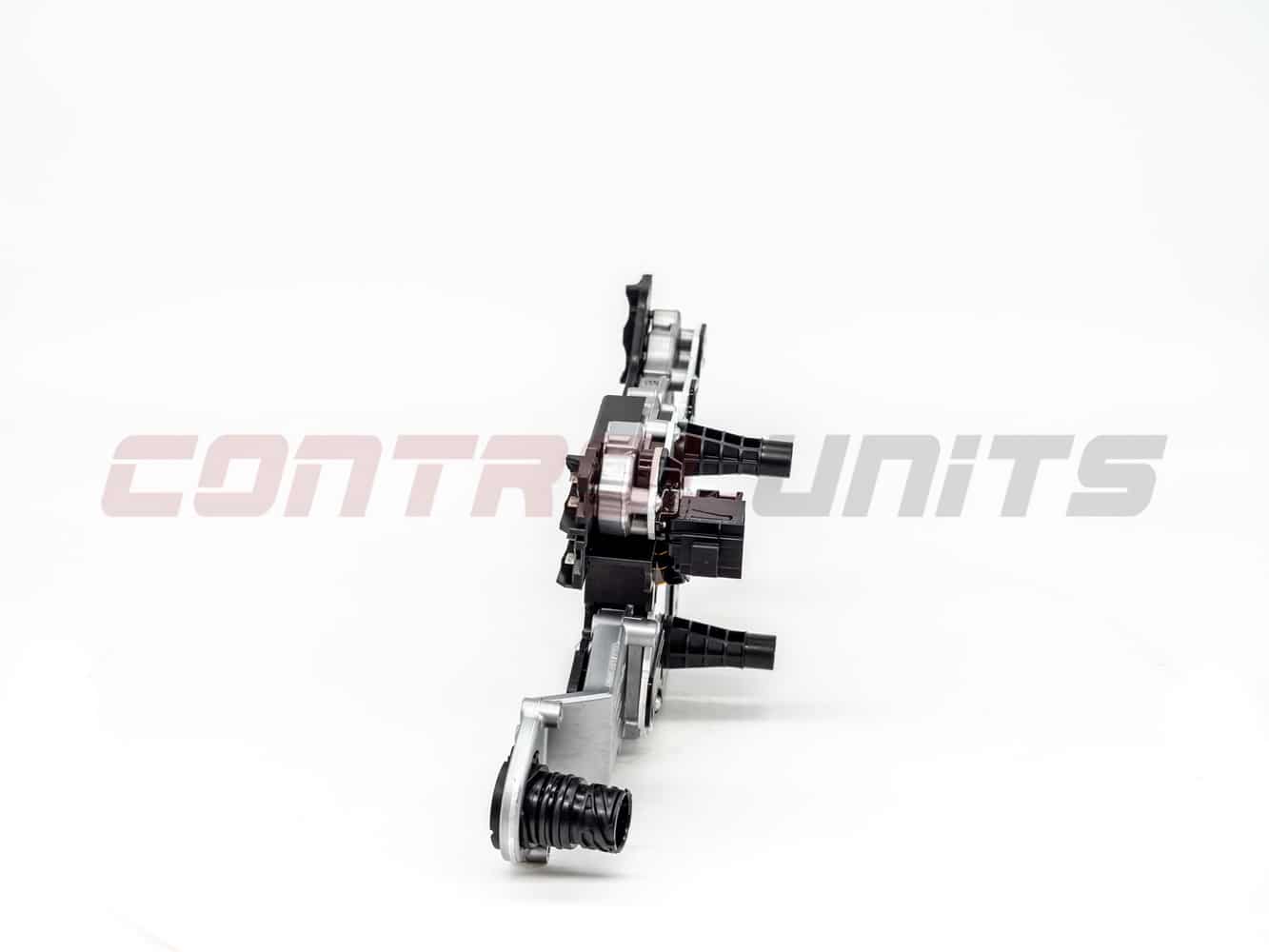

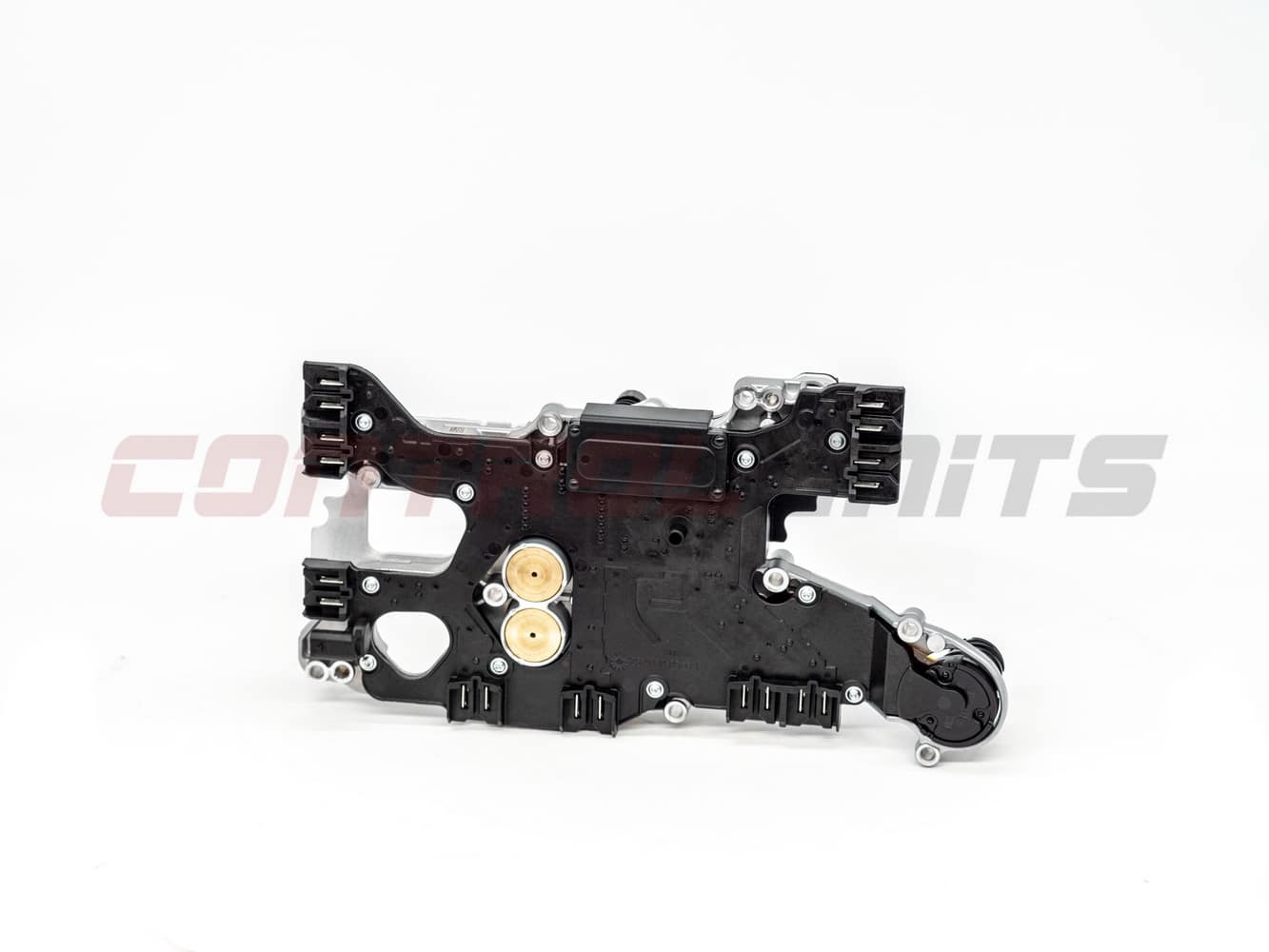

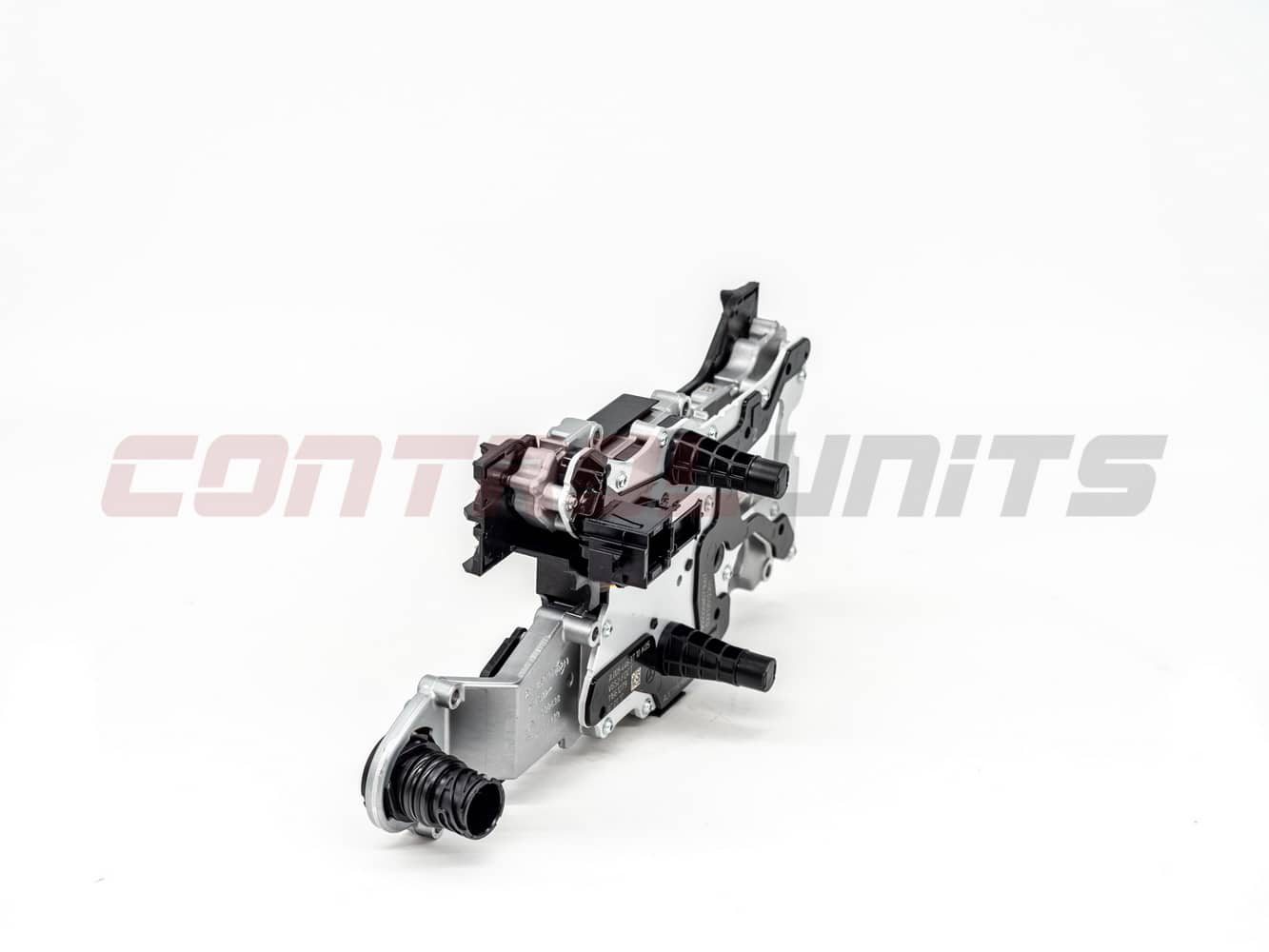

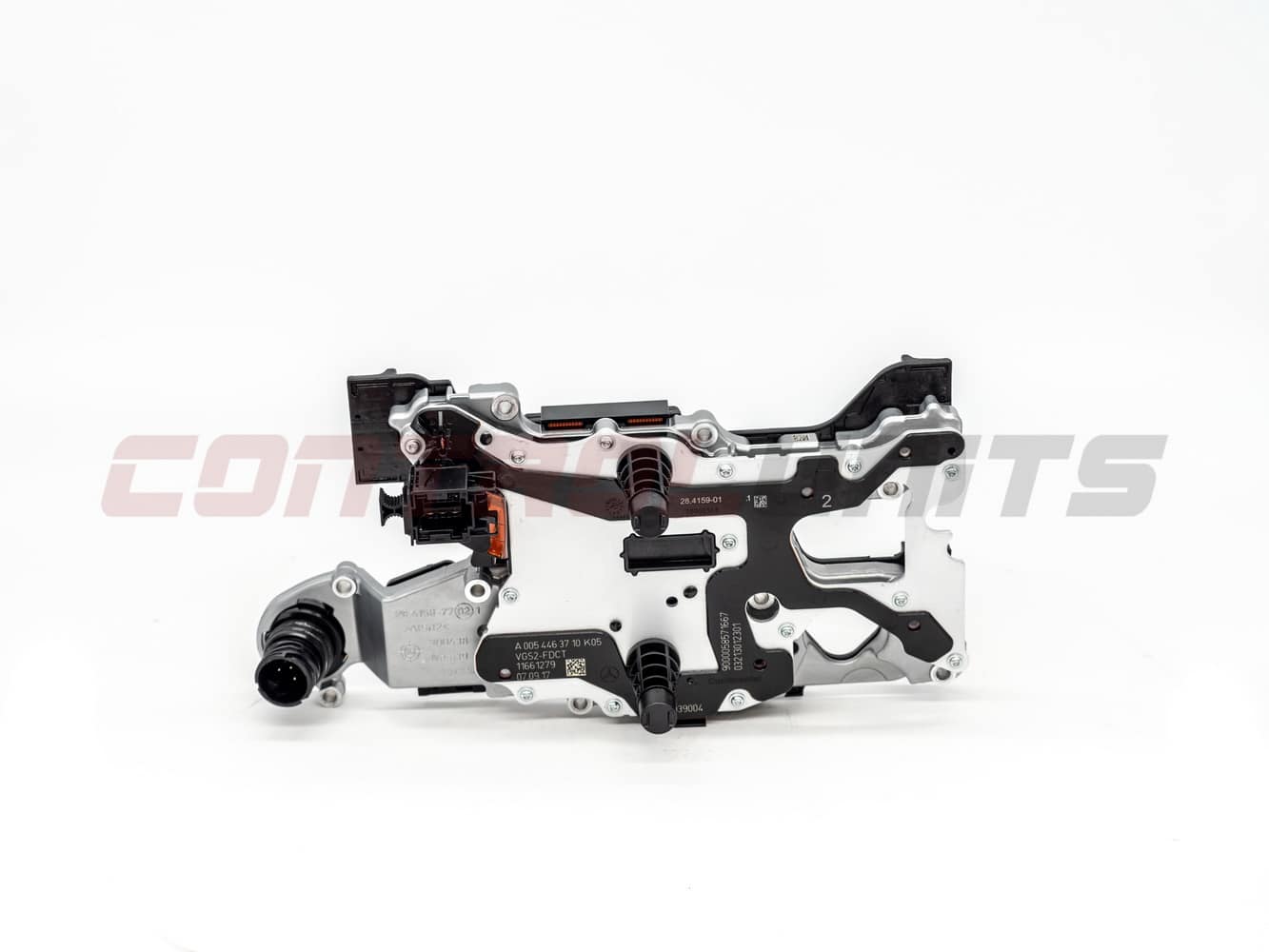

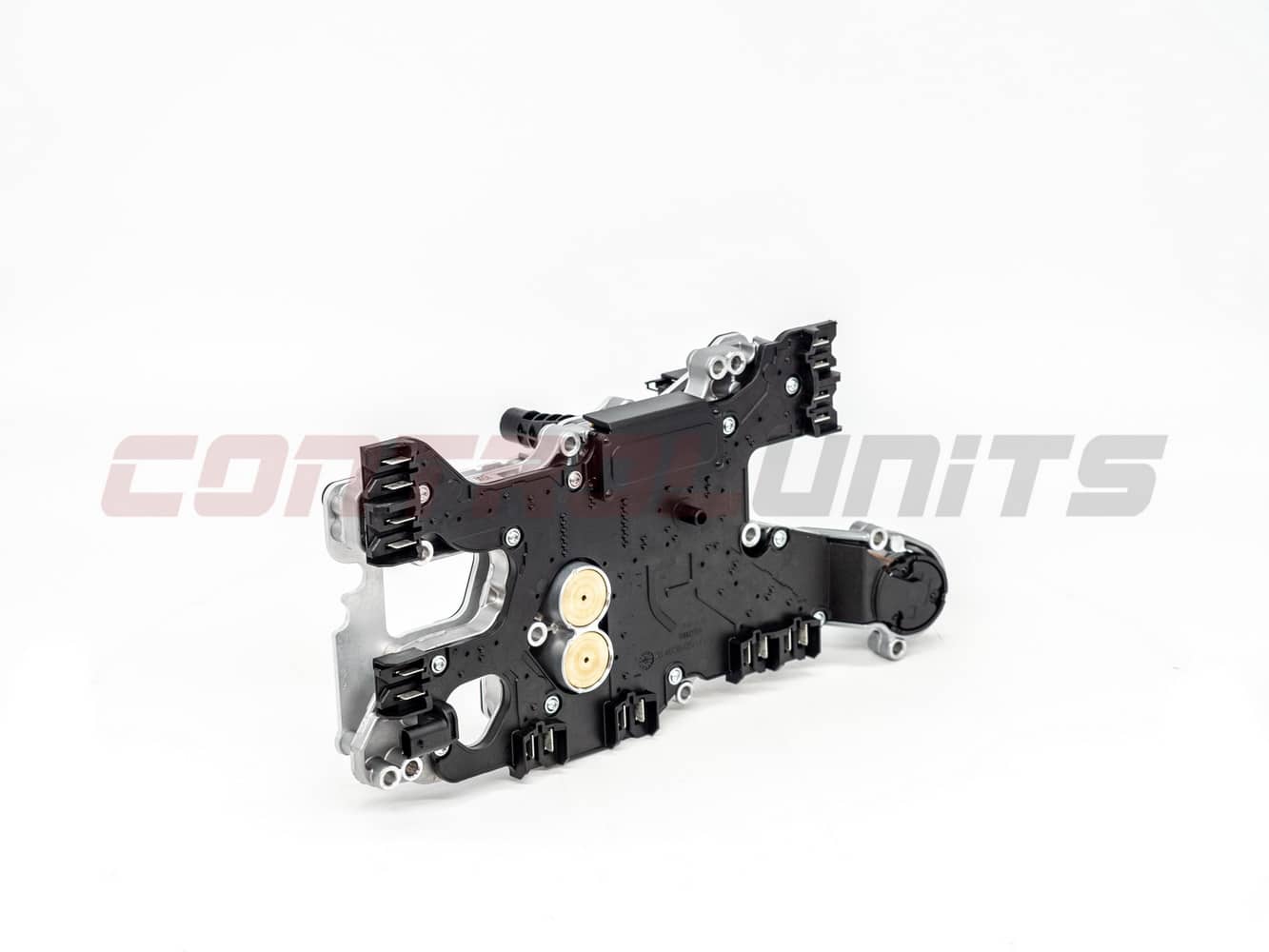

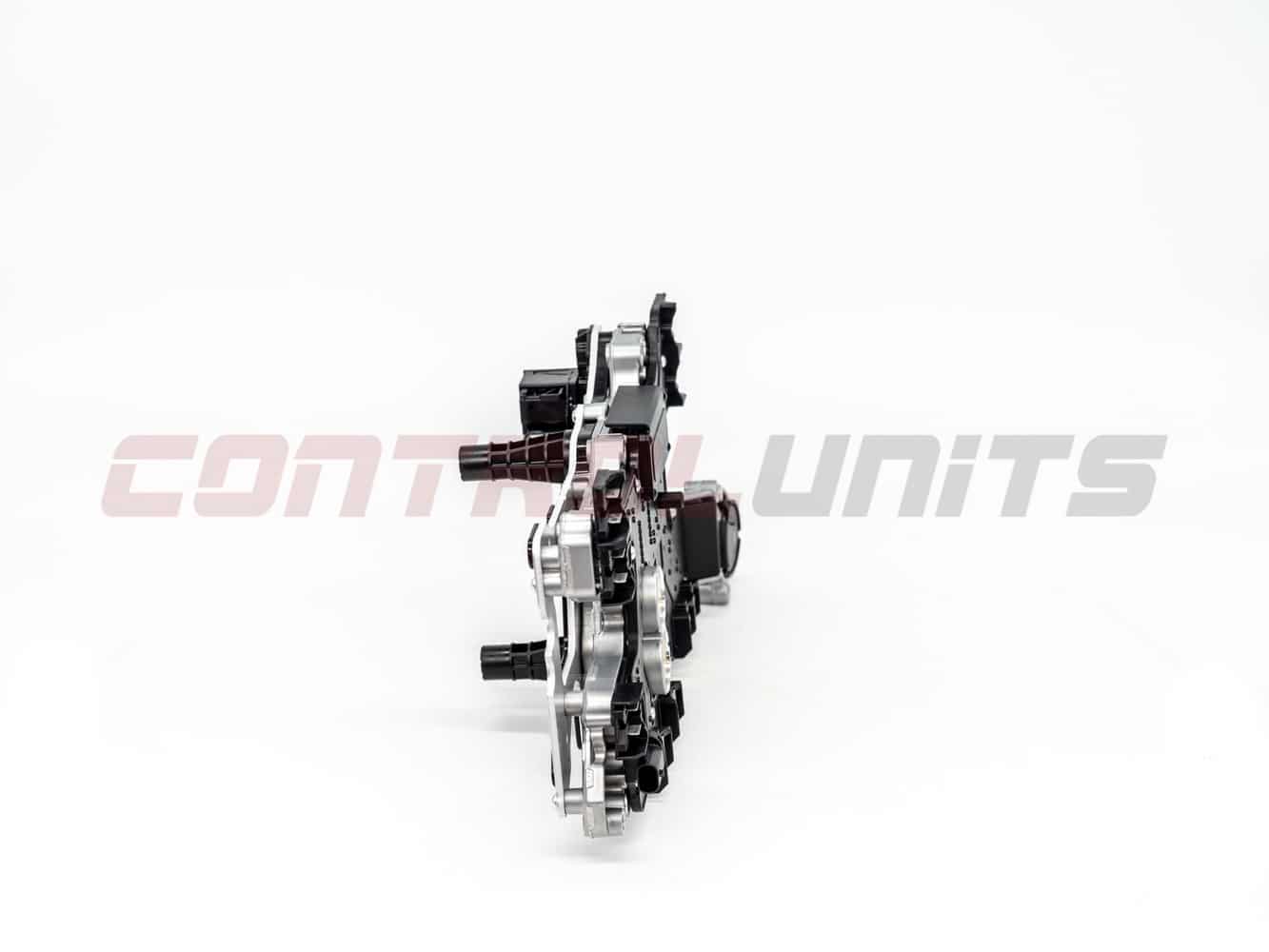

Mercedes-Benz 7G-DCT (724.0) VGS-FDCT TCU repair

24-month warranty2–5 day turnaroundTracked return deliveryNo coding needed

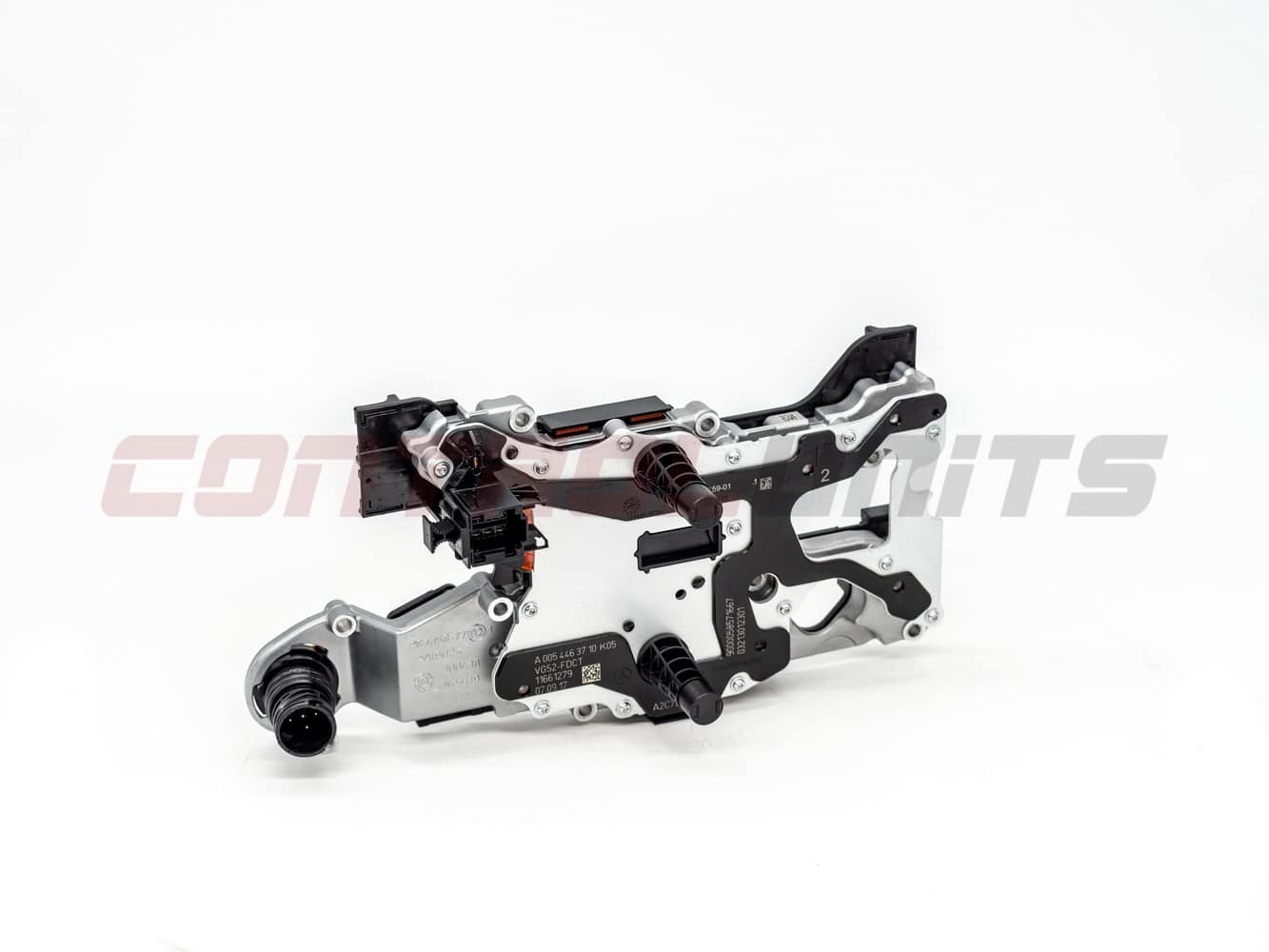

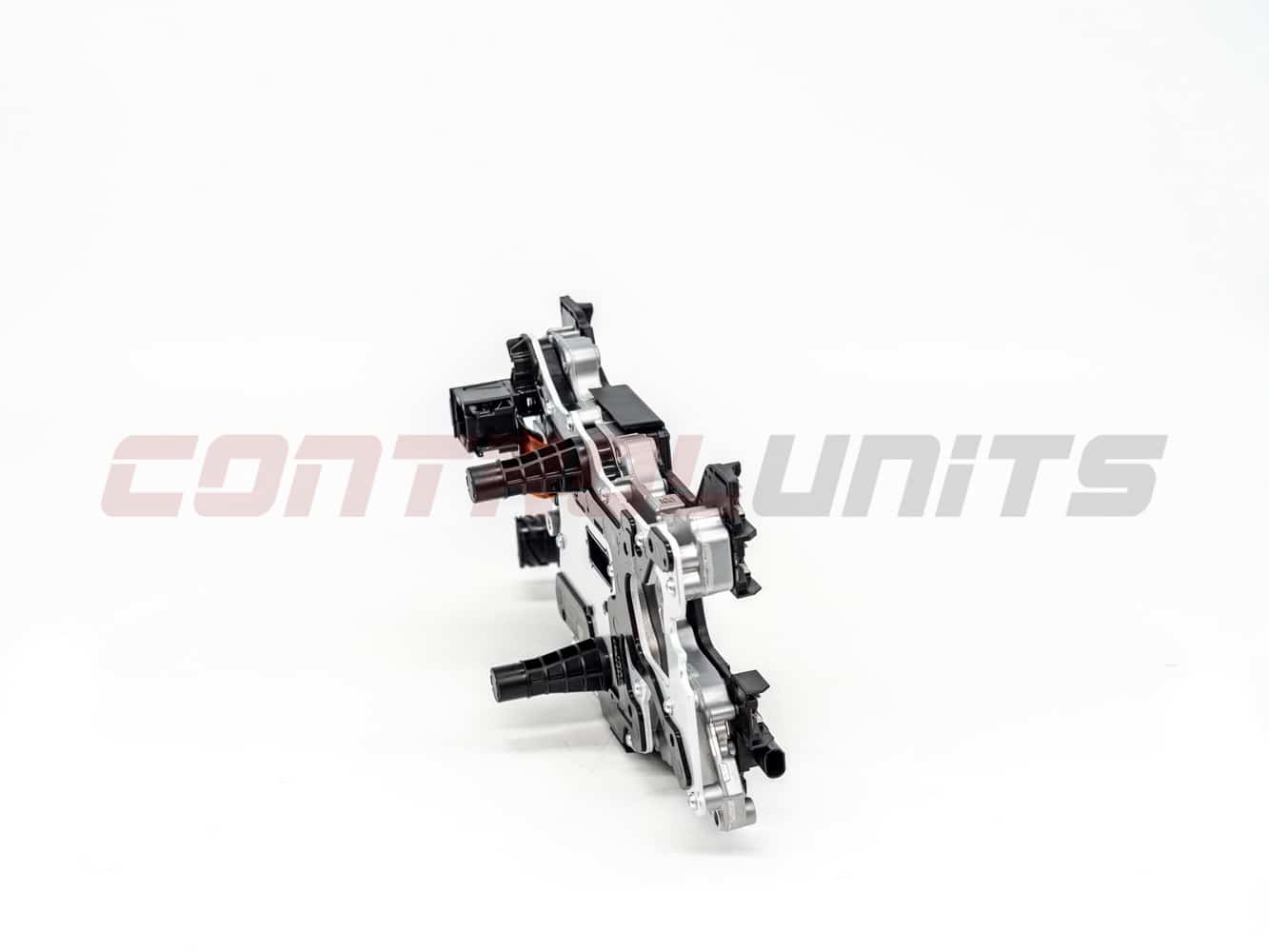

We repair the VGS-FDCT transmission control unit of the Mercedes-Benz 7G-DCT (724.0) seven-speed dual-clutch gearbox, fitted to the A-Class (W176), B-Class (W246), CLA (C117 / X117) and GLA (X156), including the AMG 45 models. Send us your original unit: we test it on the bench, replace the failed components on the circuit board, then test it again before it goes back to you — usually within 2–5 working days. You get your own unit back rather than a replacement, so it keeps the coding and security data already matched to your car — no programming or dealer visit needed. Every repair carries a 24-month warranty.

Not sure the TCU is the cause? The symptoms and the fault codes we see on this unit are listed under Common Faults. If your codes differ, send them over before ordering — if the unit turns out not to be faulty you only pay the test fee and return postage.

Which vehicles does this TCU fit?

This unit is used in the Mercedes-Benz A-Class (2012–2018), B-Class (2012–2018), CLA (2013–2018, Coupé and Shooting Brake) and GLA (2014–2018) with the 7G-DCT gearbox. Check your exact model and year under Matching Vehicles, or compare the number printed on your own unit with the part numbers listed on this page. The same hardware often appears under several part numbers — call 01884 798090 if yours is not shown.

Part numbers

Mercedes-Benz part number	Continental number
A0054463310 / A 005 446 33 10	28401701143 / 28.4017-0114.3
A0054463310 / A 005 446 33 10	28401701163 / 28.4017-0116.3
A0054463310 / A 005 446 33 10	28401701173 / 28.4017-0117.3
A0054463310 / A 005 446 33 10	28401701183 / 28.4017-0118.3
A0054463310 / A 005 446 33 10	28401701193 / 28.4017-0119.3
A0054463310 / A 005 446 33 10	28401701203 / 28.4017-0120.3
A0054463310 / A 005 446 33 10	28401701213 / 28.4017-0121.3
A0054463310 / A 005 446 33 10	28401701223 / 28.4017-0122.3
A0054463310 / A 005 446 33 10	28401701233 / 28.4017-0123.3
A0054463610 / A 005 446 36 10	A2C73429404
A0054463710 / A 005 446 37 10	A2C73939004
A0054463710 / A 005 446 37 10	A2C73939005
A0054463710 / A 005 446 37 10	A2C73939006
A0002702700 / A 000 270 27 00	–
A0002703600 / A 000 270 36 00	–
A0002703900 / A 000 270 39 00	–
A2463701701 / A 246 370 17 01	–
A2463704802 / A 246 370 48 02	–
A2463705500 / A 246 370 55 00	–

Frequently asked questions

Does the unit need coding or programming afterwards?

No. This is a repair, not an exchange — you get your original unit back, so it keeps the coding and security data already matched to your car. Refit it and clear any stored fault codes with a diagnostic tool.

How long will I be without the unit?

We aim to complete all repairs within 2–5 working days. Should a repair take longer, we will contact you with an update. It goes back to you on a tracked service.

My part number isn’t in the list — can you still help?

Usually yes. The same hardware appears under many part numbers. Send us a photo of the label or call 01884 798090 and we’ll confirm before you send anything.

What warranty do I get?

Repairs of this unit carry a 24-month warranty. See Returns & Warranty for the full terms.

Will the warning light go out after the work?

Yes, once the unit is refitted and the stored codes are cleared, provided the fault was in this unit. If a related wiring or sensor fault is also present it has to be fixed separately — we tell you what we found.

Common Faults

What are the symptoms of a failing Mercedes-Benz 7G-DCT VGS-FDCT TCU?

Harsh, jerky or delayed gear changes
Gearbox dropping into limp mode, or a complete loss of drive
Flashing gear indicator on the instrument cluster
A “gearbox malfunction” warning on the dash
No response when selecting D or R

Common fault codes

Fault code	Meaning
—	No communication possible with the control unit
P071100	Transmission fluid temperature sensor – implausible signal (on request only)
Other Faults – On Request

Seeing different codes, or not sure the TCU is the cause? Call 01884 798090 — we’ll check your codes and symptoms before you send anything.

Matching Vehicles

Make	Model	Years
Mercedes	A-Class	W176 (2012-2018)
Mercedes	B-Class	W246 (2012-2018)
Mercedes	CLA-Class	C117 / X117 (2013-2018)
Mercedes	GLA-Class	X156 (2014-2018)

How It Works

Place your order online — add the service you need to your basket. Before the item is added we ask for your vehicle details and fault codes, so we know exactly what we are working on.
Send us your unit — securely packed, or ask us to arrange a collection (UK only).
We do our part — we test your unit first, then repair it, usually within 2–5 working days. If it turns out not to be faulty, you pay only the test fee and postage.
Tracked return delivery — by DHL Express or DPD, with payment taken once the work is complete.

Need to know more? Call 01884 798090 or see How to order · Delivery pricing · Returns & warranty.
